D3 LED Triproof Light

Options:

> Driver: BOKE fixed power driver,DIP switch power adjustable driver;
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,Microwave sensor,Emergency;
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
> Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;

> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;

Model No.	DR-TP020-CG2XPX	DR-TP030-CG4XPX	DR-TP040-CG4XPX	DR-TP040-CG5XPX	DR-TP050-CG5XPX
System Watts/W	20W	30W	40W	40W	50W
System Efficiency/LPW	130LPW / 160LPW Optioanl
Lumen Output/lm	2.600/3.200±5%	3.900/4.800±5%	5.200/6.400±5%	5.200/6.400±5%	6.500/8.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>90Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V, DALI,Zigbee
Sensor(Optional)	Daylight sensor/Microwave Sensor
Emergency(Optional)	5W@3 Hours or Customized
Protection Class	ClassⅠWhite
Finishing Color(Optional)	RAL9016 Optional
Material	PC+PC
Lifespan/Hrs	54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	- 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Length	2ft	4ft	5ft
A	602mm	1202mm	1502mm
B	638mm	1238mm	1538mm
C	63mm	63mm	63mm
D	73mm	73mm	73mm

INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:

Please read all the instructions below before installation
> Make sure that the supply voltage corresponds to the rated product voltage;
> The product must be installed by a qualifed electrician in accordance with the National Electrical Code and corresponding local codes.
> If the product is damaged, do not use it!

RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.

Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualifed electrician to ensure correct branch circuit conductor. DUALRAYS® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.

(I) Emergency Function

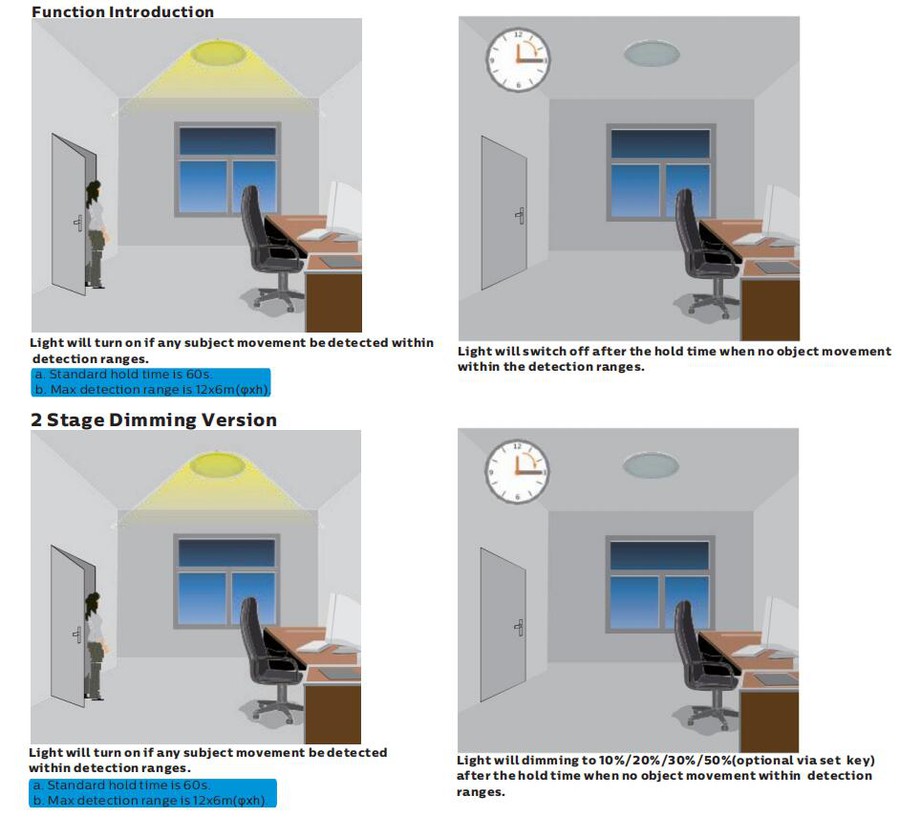

(II) Microwave Sensor Introduction

DALI Device

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-TP020-CG2XP	12.5	670*440*200	13.2	9PCS
DR-TP030-CG4XP	15.8	1270*360*200	17.5	9PCS
DR-TP040-CG4XP	16.1	1270*360*200	18.3	9PCS
DR-TP040-CG5XP	19.1	1570*360*200	20.6	9PCS
DR-TP050-CG5XP	19.5	1570*360*200	21.4	9PCS
